NGP provides 3D modeling and Drafting services of – (but not limited to)
- Develop module & detailing of GRC & FRC cladding panel
- High-Rise Buildings Detailing
- Petrochemical, Thermal plant & Oil Refinery Plant Detailing
- Pipe rack module Detailing
- Offshore & Onshore Structures Detailing
- Steel Trench / Drainage Way Detailing

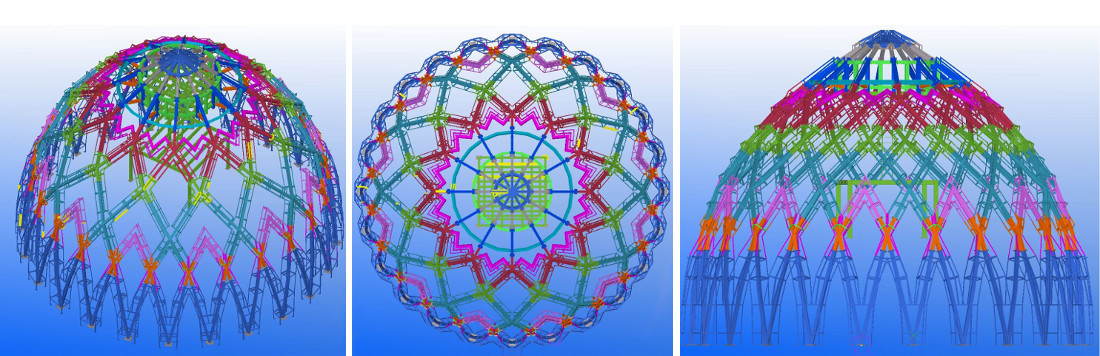

- Domes Structure Detailing
- Industrial Plant Detailing
- Equipment Support Structures Detailing
- Steel Truss Detailing
- Steel Trestle / Tower Detailing
- Circular platforms Detailing
- Conveyor Structure Detailing
- Pre-Engineering Buildings Detailing
- Fender Jacket Support Detailing
- Ware House Detailing
- Commercial Structure like Hospital, School, Stadium and Business center etc.
- Miscellaneous Structures Such as Handrail, Grating, Canopy & Stair Detailing
- Fence & Cladding Detailing
- Duct Work Detailing
Our deliverable output services include:
- Budget & Bid offers
- Preliminary MTO
- 3D Model
- GRC & FRC cladding panel drawing
- Erection Drawing
- Main Steel Assembly Drawing
- Re-inforcement Detailing
- Cut and Bend Schedule(BBS)
- Anchor Bolt Drawing
- Single Part Drawing
- Prepare advance Bill of Material
- Cutting Plan
- Bolt List
